Policy demo: observational view (not the webcam used in policy)

Project Phase 1: LeRobot Open Source Policy Training

Task: Pick up a 1.5 in cube from various positions and orientations and place it in an open-top box. A trial counts as a success only if the arm grasps the block and places it in the box on the first attempt. Regrasps were not possible because I removed the block immediately after any failed attempt.

I trained two Action Chunking Transformer (ACT) policies with the LeRobot (Hugging Face) toolset, each on 50 teleoperated demonstration episodes. Both were evaluated over 50 trials. Policy 1’s test used only standard placements; Policy 2’s included 9 deliberate edge cases (described below). On comparable placements, success went from 32% (16/50) to 68% (28/41). Naming key: Policy 1 = V2 (“black_box”), Policy 2 = V3 (“block_in_box”). The Hugging Face model and dataset names use the V-numbers.

Policy 1: 16/50 successful trials (32%).

Dataset Data Analysis

The most common failure was the gripper closing directly behind the block. I traced this to depth perception: from the original camera mount, the policy couldn’t judge how far away the block was because the camera viewed the table from such a shallow angle.

Policy 2: 29/50 successful trials (58%), including the 9 edge cases; 28/41 (68%) on standard placements.

Policy Dataset Data Analysis

I designed and fabricated a new camera mount with a more overhead view of the workspace. The overhead angle reduces how much the policy depends on depth estimation, and it puts more of the workspace in frame. On standard placements, the grasp-behind-the-block failure dropped from 22 occurrences (Policy 1) to 4 occurrences. Across all 50 Policy 2 trials there were 9 occurrences.

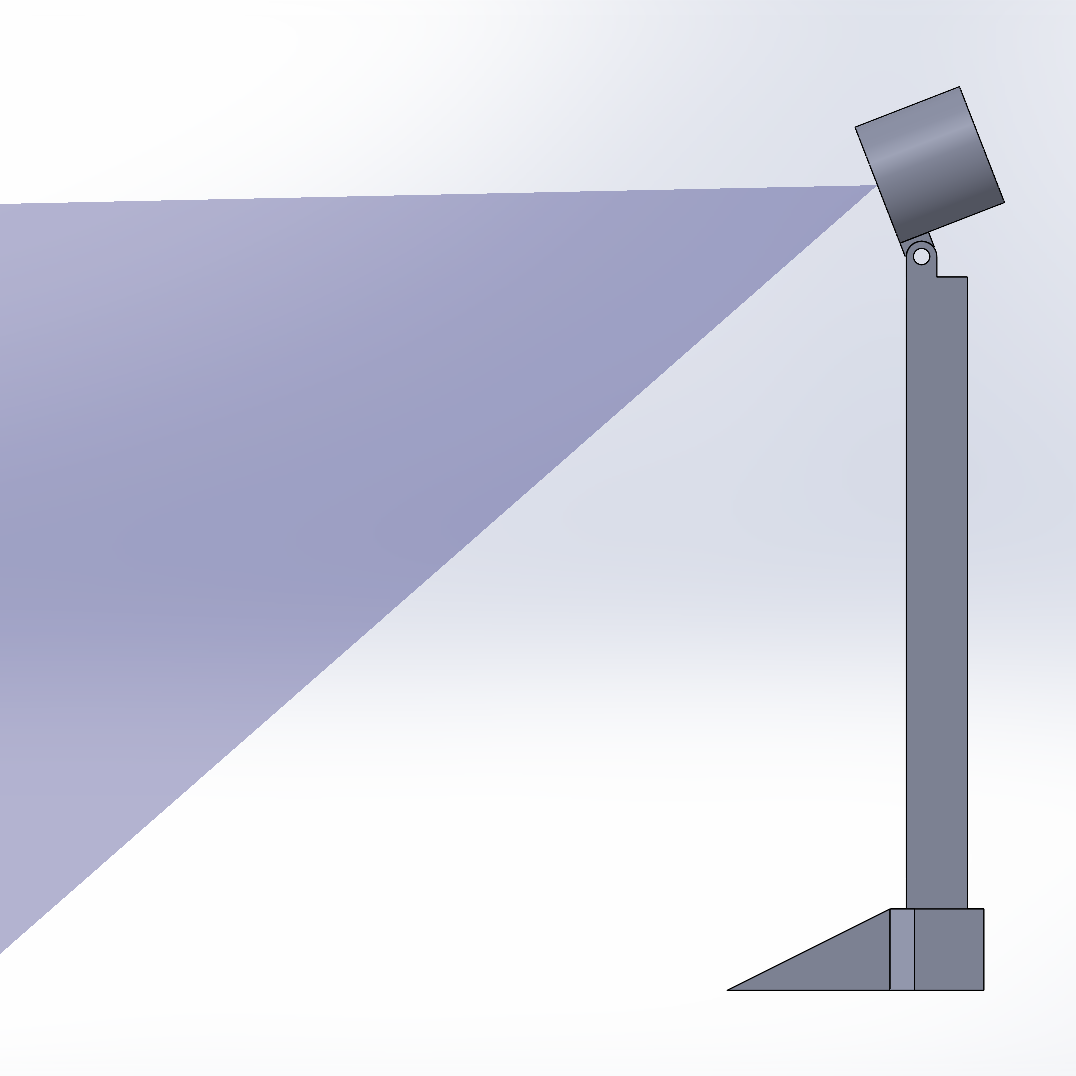

CAD side view of the Policy 1 camera mount: a vertical post with the camera at the top, looking across the table at a shallow angle; its field of view is drawn as a long, low triangle. — Camera Mount System for Policy 1

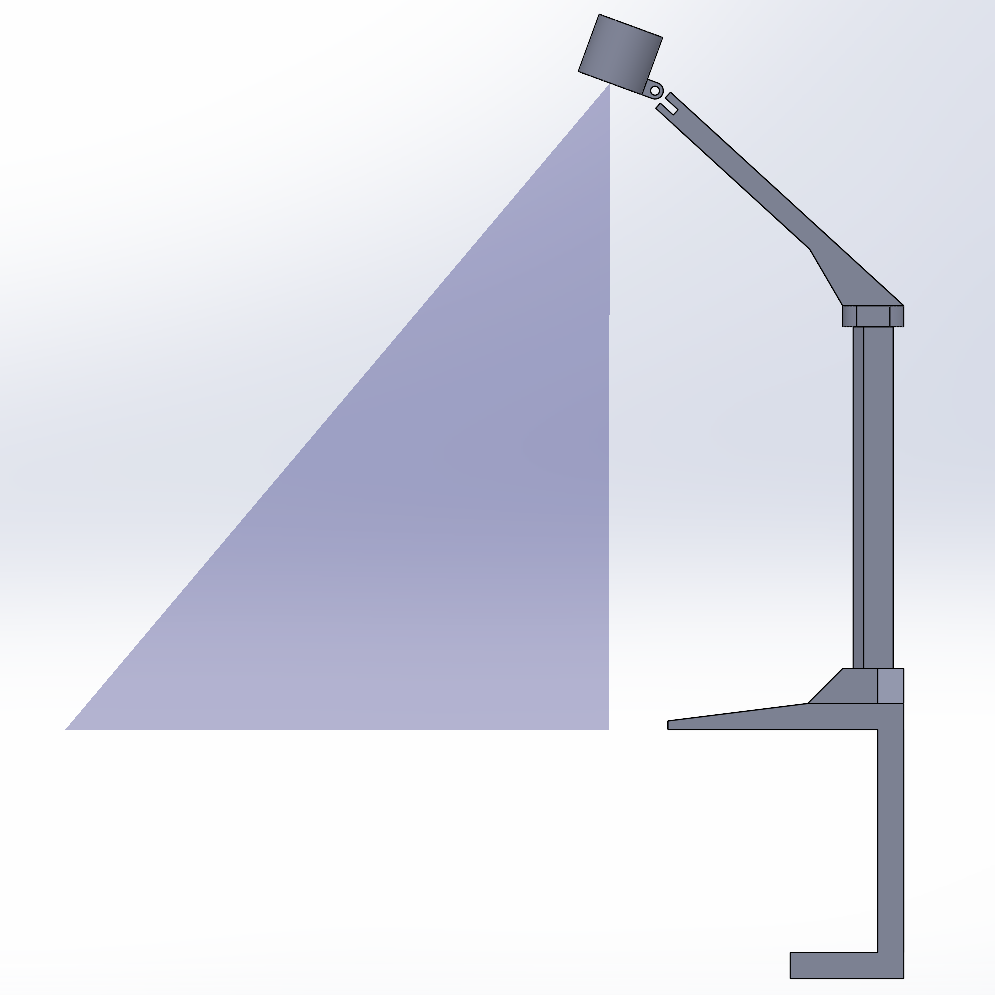

CAD side view of the Policy 2 camera mount: a post with an angled arm that holds the camera out over the workspace, looking down steeply; its field of view is drawn as a triangle pointing down at the table. — Camera Mount System for Policy 2

New failure mode: failures concentrate at and beyond the edge of the training data.

With this stronger policy, I tested how it would perform when the block was outside the area it was trained on. In episodes 41–49, I deliberately placed the block next to the box (marked as squares with black borders). Policy 2 succeeded in only 1 of those 9 trials. Another outlier is episode 21, which sits completely outside of every training demonstration. As the video shows, the arm never reaches beyond the area covered in training and misses the block entirely, even though the arm is physically able to reach the block.

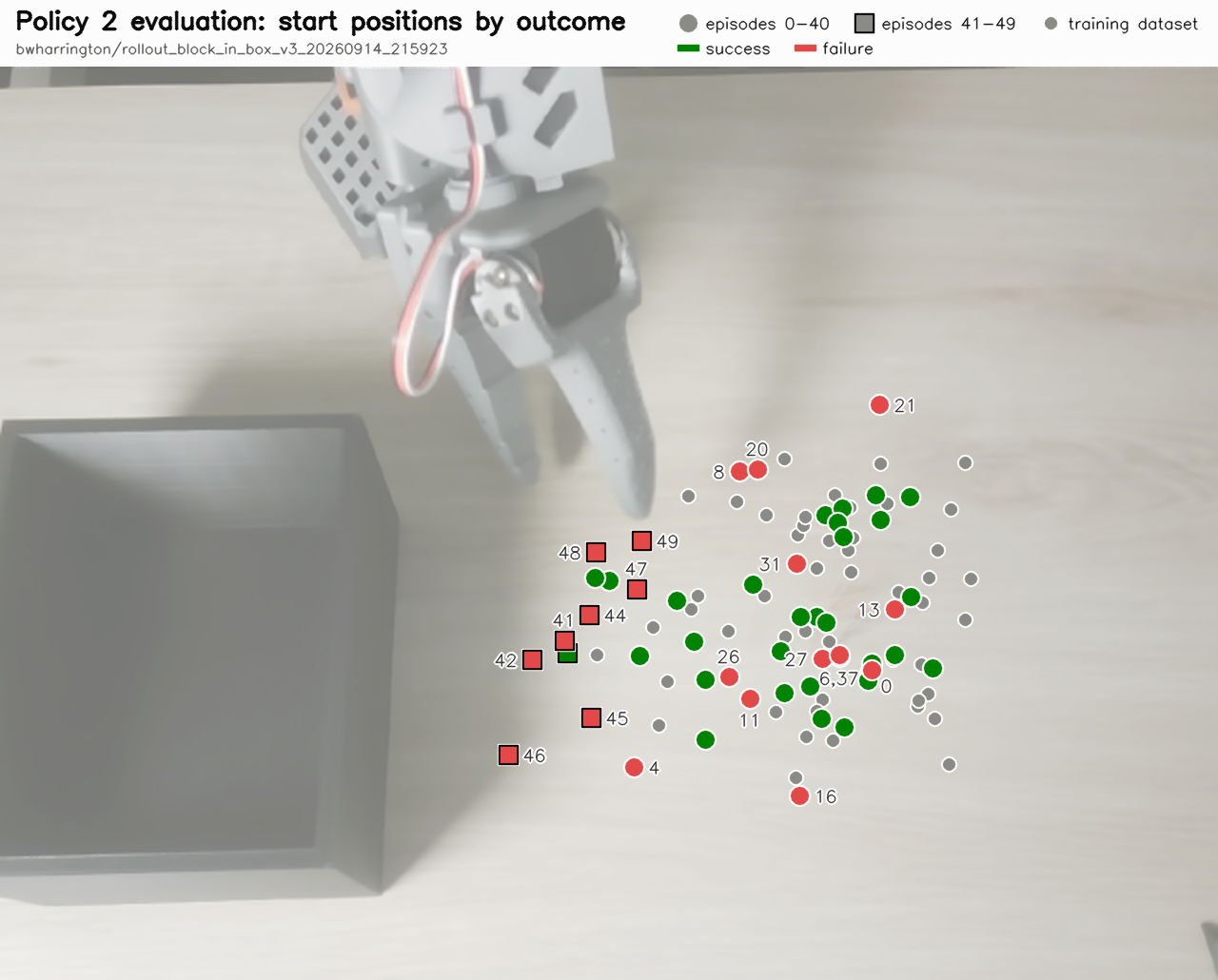

Policy 2 evaluation: block start positions by outcome, plotted over an overhead photo of the workspace. Green marks are successes and red marks are failures; circles are episodes 0–40, black-bordered squares are episodes 41–49, and small gray dots are training-demonstration start positions. The squares cluster next to the box, outside most of the training positions, and nearly all are red. Episode 21 is a red circle far from every training position.

Policy 2, evaluation episode 21

Note on sample size: Each policy was tested on 41–50 trials, so these rates carry roughly ±13 percentage points of uncertainty.

Next Steps

Every improvement so far has required me to teleoperate more demonstrations by hand, and that is now the bottleneck. Training models in simulation will allow me to use orders of magnitude more data points, covering the whole workspace.

I’m building a MuJoCo simulation of the SO-101 wrapped in a custom Gymnasium environment. My first goal is a PPO policy (Stable-Baselines3) trained in simulation with the block’s position given directly as state. After that, the harder step is sim-to-real: switching the policy to camera input and using domain randomization so it transfers to the physical arm.

Step 01
Discovery: I conducted discovery interviews following the Jobs-to-be-Done framework
Step 02
Prototyping: I used this knowledge of workflows and pain points to develop agent concepts, built cheaply in Claude Design
Step 03
Validation: I went back to the same interview participants for feedback on the prototypes

Discovery

I conducted four 1-hour discovery interviews with individuals across three business units. The interviews held a conversational format using the Jobs-to-be-Done framework to understand current workflows and pain points. The goal for this project was to design around how our sales reps actually work, not how we assumed they would use the new Agentforce platform.

Figure 2.1 Jobs identified through interviews

Designing & prototyping

The first step of the design was to gather and analyze the data collected through interviews. This yielded an extensive list of jobs and their scope across the three business units. Organizing these jobs into a Venn diagram yielded Figure 2.1, shown above.

To maximize the value proposition, I focused on creating solutions for the jobs shared across all three business units: account prep, worklist construction, cross-functional troubleshooting, and document synthesis. I mapped these shared jobs onto Agentforce solutions that could both increase efficiency and in some cases improve output quality.

Figure 2.2: Mapping Jobs to Agents

Job 1. Account prep

Today: 45–90 min per meeting, assembled from 3+ systems

is addressed by agent

A1 · Account Intelligence

One brief, three role-customized views
Job 2. Worklist construction

Today: 1–2 hrs every Monday morning, one report at a time

is addressed by agent

A2 · Proactive Worklist

Ranked, cross-checked, pushed not pulled
Job 3. Cross-functional troubleshooting

Today: 15–50 min per billing issue, with no authority to fix it

is addressed by agent

A3 · Workflow Orchestration

Triage, route, guard, escalate
Job 4. Document synthesis

Today: 5–15 decks a week, system data retyped by hand

is addressed by agent

A4 · Artifact Synthesis

Drafts only, behind a QA gate

A1: in focus (agent A1, Account Intelligence)

After identifying the agents to be designed, I homed in on agent A1: Account Intelligence. This agent will provide an account summary right on the Salesforce account landing page, pulling the specific metrics that the end users voiced in discovery in order to give them the view that will provide them with the most value. The discovery interviews laid bare that an agent of this nature could save each sales rep upwards of 20 minutes before each account contact point, saving an estimated 4 hours of prep time per person every week.

In addition to these efficiency gains, this agent will evaluate every account against the same criteria, removing the variability that occurs when analysis quality depends on a sales rep's time, attention, or experience.

As part of creating an optimized account brief view, additional sub-agents will eventually pull service history from a customer's devices, and data from other systems outside of Salesforce.

A1 subagents (the five sub-agents that make up agent A1, Account Intelligence)

BU 1 Account Brief (account brief view for Business Unit 1)
BU 2 Account Brief (account brief view for Business Unit 2)
BU 3 Account Brief (account brief view for Business Unit 3)
Service History Q&A
Cross-System Answers

UX rules identified

Push, don’t pull: individuals made it clear that the most impactful and useful tools are the ones that get automatically pushed to their dashboards.

One agent, three views: each of the BUs requested different views into the same core data points, so a single agent with individualized sub-agents should be utilized, as they will all be grounded in the same data

Prototyping

Using Claude Design I was able to create elaborate prototypes in HTML for the end users to get an accurate understanding of what the user experience will be of the shipped agent. This efficient prototyping process allowed me to create the individualized view for each of the business units.

Validation sessions

I returned to the same interview participants with the HTML prototypes for 30-minute feedback sessions on design utility. These sessions resulted in further design criteria for the next iteration of prototypes.

2027 Challenge Rulebook

Science Module Engineering Lead

Mid October 2026: Conducting trials to determine the viability of chemical tests indicating the presence of active life in soil samples. Finishing preliminary CAD designs and ordering parts.

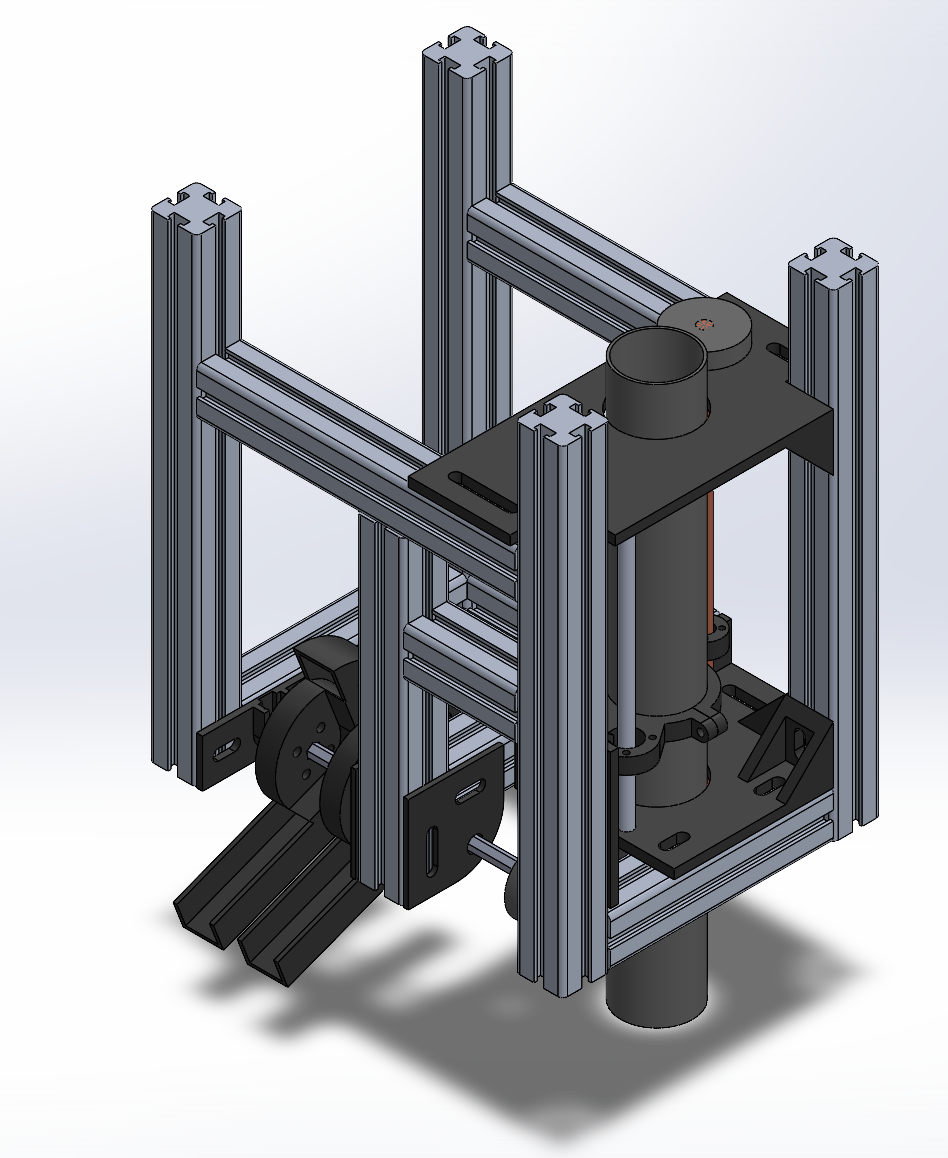

CAD assembly of the Spring 2026 science module: a frame of 30 mm aluminum extrusion holding a vertical tube between two black mounting plates, with two topsoil scoops mounted low on one side. — Spring 2026 CAD Assembly

Spring 2026 Prototyping

The Spring 2026 design yielded a design that had far too much mass to be viable for the rover. This was due to budgeting constraints making 30mm aluminum extrusion my only structural option, which I only learned about after I had started building. The only successful element of the design that will carry over to the 2027 product is the topsoil scoops, designed to deposit their soil sample at a greater distance than they collect the sample from.

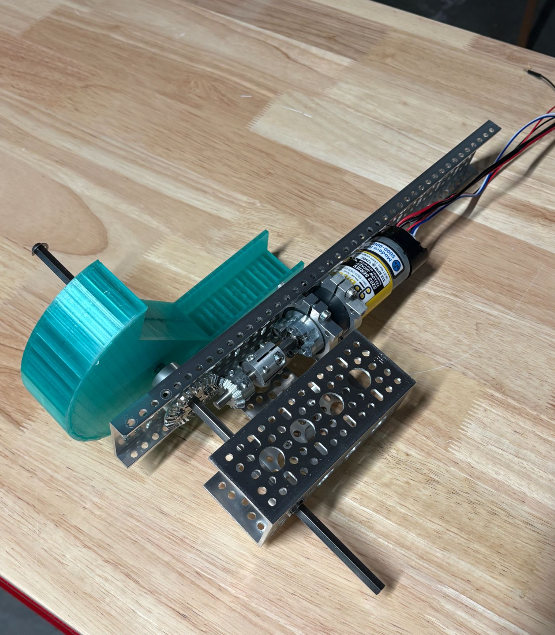

Photo of the first topsoil scoop prototype on a test bench: a green 3D-printed scoop on a shaft, driven by a geared DC motor mounted on an aluminum channel, resting on a wooden table. — Scoop Iteration 1 on Test Bench
